Handie-Talkie or Walkie-Talkie?

In ham radio, we often use Handie-Talkie or HT to describe a compact, handheld transceiver. My first exposure to the term Handie-Talkie was when I became a licensed radio amateur in 1977. As a student at Purdue University (W9YB), the absolute coolest VHF radio to have was the Motorola HT-220. Even a used one commanded a high price so they were out of my price range and I never owned one. These were 6-channel crystal-controlled transceivers…back then you had to set up the radio with the particular 2m frequencies you wanted to use. Because it was such an iconic radio, there are many HT-220 enthusiasts still around with websites with tons of useful information. See the HT-220 Page.

Motorola trademarked the name Handie-Talkie and used that nomenclature for many years with its line of portable radios. However, this trademark has expired, so now Handie-Talkie is a generic term.

The First Handie-Talkie

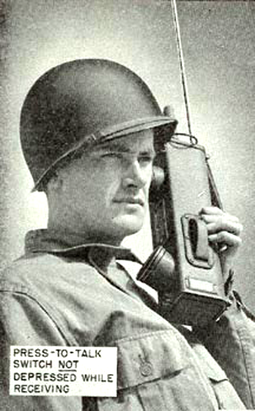

But the HT-220 was not the first Handie-Talkie, so I started poking around to find out how this name originated. Back in World War II, the SCR-536 was a portable “hand-held” transceiver developed in 1940 by Galvin Manufacturing (later Motorola, Inc.)  I put “hand-held” in quotes because, by today’s standards, it was a Hand FULL. But most people consider the SCR-536 to be the first modern, self-contained HT transceiver. The Wikipedia article for the SCR-536 describes the radio quite well. The radio put out about 360 mW of RF power on 3.5 and 6.0 MHz (Oops, I mean 3500 to 6000 kilocycles) using Amplitude Modulation (AM). The circuitry relied on smallish vacuum tubes, creating quite a design challenge. Motorola has a page on its website that talks about the origins of the radio. IEEE Spectrum also published an excellent article: The SCR-536 Handie-Talkie Was the Modern Walkie-Talkie’s Finicky Ancestor. The January 2005 issue of QST has an interesting article by Gil McElroy, VE3PKD, A Short History of the Handheld Transceiver. It provides more history and insight into this fun topic.

The First Walkie-Talkie

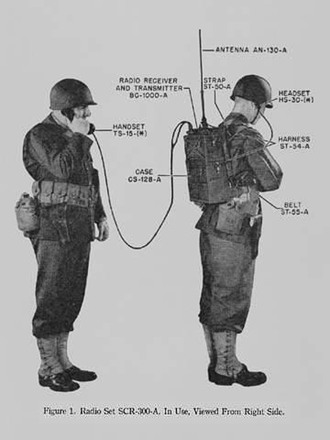

A few years later (1942), a backpack portable radio was introduced, called the SCR-300. I always assumed that the backpack-style radio would have come first and the more compact radio SCR-536 would be later. (Actually, there were previous backpack radios, such as the SCR-194). This new backpack-style radio was referred to as a Walkie-Talkie. According to the manual, the SCR-300 was “primarily intended as a walkie-talkie for foot combat troops”. I suppose the emphasis was on how you can walk and talk, with a radio on your back.

This article: SCR-300 WW2 Radio Backpack: The “Walkie Talkie” That Shaped the War describes this radio as a game-changer for frontline troops. The radio weighed a heavy 35 pounds, and used Frequency Modulation (FM) on 40 to 48 Megacycles.

Of course, with technology development, there is always the question of “who was first”? The SCR-194 that predated the SCR-300 might be considered the first walkie-talkie. However, the SCR-300 and the SCR-536 seem to get all of the glory, probably due to their impact on the war effort. However, take a look here if you want to dig deeper: TALK the WALK or WALK the TALK: Who actually developed the first Walkie-Talkie?

This article describes the development and use of the SCR-300 and mentions some of the limitations of the SCR-194: SCR-300 History Development Employment and Details Final Draft This is a big file with many photos but worth reading if you have the time.

Today’s Terminology

Fast forward to today and we see that the HT and Handie-Talkie nomenclature is common in the amateur radio world. The photo to the left shows a modern 2m/70cm HT, the Yaesu FT-4X.

The term “walkie-talkie” has morphed to something quite different and is used generically to describe a handheld radio. This term covers a wide range of radios, from low-cost Family Radio Service (FRS) radios to higher-quality professional radios. This is quite different from the original Walkie-Talkie, a backpack radio weighing 35 pounds.

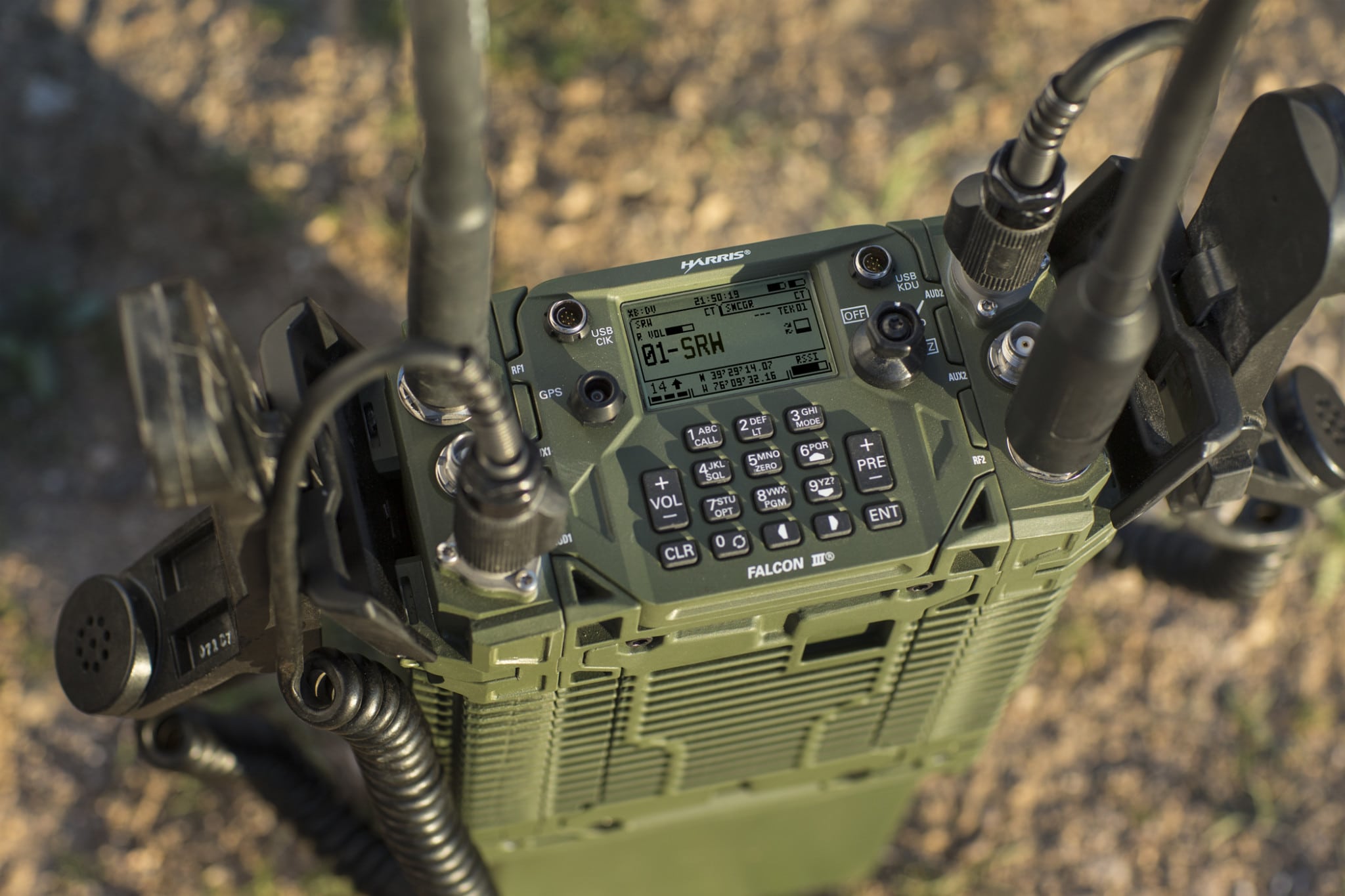

The military has progressed with improved communication technology, still using backpack-style radios, now referred to as manpack radios. These are amazing radios that pack extensive capability into a relatively small package. The AN/PR-158 shown below covers 30 to 2500 MHz in frequency, satellite comms, advanced encryption, narrowband and wideband modes: AM, ASK, FM, FSK, PSK, CPM, GMSK, and plenty more. This radio weighs 12.7 pounds with the battery installed, so a lot lighter than the old SCR-300.

So that’s a quick tour through some radio terminology along with a bit of historical perspective. I discovered there is an infinite supply of information out there on the history and technology of military radios. If you want to dig deeper, go for it!

73 Bob K0NR
