Combined SOTA / POTA Activations

Posted on by — No Comments ↓

Joyce/K0JJW and I have been doing combined Summits On The Air (SOTA) and Parks On The Air (POTA) activations. Most of the SOTA summits we activate are inside parks as defined by POTA. Our primary focus is using VHF/UHF from SOTA summits with POTA is being a nice addition. Although the two programs have a lot of similarities, there are some significant differences that need to be understood.

SOTA / POTA Differences

Let’s compare the two programs to understand the differences, so you can have a successful activation with both. We will focus on differences when doing an activation so this is not an exhaustive list.

  • Summits Vs Parks. Well, this is the fundamental difference. Summits tend to be small in area, defined by a specific lat/lon coordinate and the surrounding activation zone (AZ). The activation zone is roughly defined as the area surrounding the actual summit, staying within 25 vertical meters. Parks can be almost any size and may cover many square miles. Both SOTA and POTA maintain lists of official summits or parks, so it should be clear whether one of these is valid for an activation.
  • Accessibility. While there are drive-up and easy walk-up summits, most SOTA summits require a hike. Many of them are physically challenging. Parks often have easier, park-like access. Or you can always do a 50-mile backpack trip for a POTA activation.
  • Equipment restrictions. SOTA allows you to reach the activation zone in a vehicle but you must move away from the vehicle an unspecified distant and operate totally independent of the vehicle. On drive-up mountains, our practical application of this rule is to load up our normal SOTA gear into backpacks, hike away from the vehicle, and set up for the activation. SOTA requires the use of portable power sources but not fossil-fuel generators. This pretty much means battery power, perhaps augmented with solar panels. POTA does not have such restrictions, so if you meet the SOTA requirements you’ll be valid for both.
  • Scoring. SOTA emphasizes the accumulation of activator and chaser points, while layering in other challenges such as Summit-to-Summit (S2S) scores. Each summit has a point value assigned to it, based on elevation. In POTA, all parks are created equal and the main focus tends to be on the number of activations and the number of parks hunted (chased).  POTA also has awards for the number QSOs. For example, the Kilo Award is achieved by making 1000 QSOs from a single park (usually over multiple activations). Both programs have quite a bit of variety and flexibility built into their awards and operating objectives, which is one of the reasons people enjoy the programs.
  • Successful Activation. SOTA requires only one radio contact for a successful activation. But to receive point credit for the summit, which is what most people are after, you need to make at least 4 contacts. So most SOTA activators define success as getting at least four contacts. The 4 SOTA contacts must be with 4 different stations, with no credit for working the same station on multiple bands. In contrast, POTA requires 10 QSOs for a successful activation.  POTA does count QSOs with the same station on different bands. For example, an activator could obtain the required 10 POTA QSOs by working just two stations on 5 different bands.
  • Same Location QSOs. A SOTA activator does not get credit for working another station on the same summit. That is, the other station must be outside of the summit activation zone to be counted. POTA allows an activator to work another activator in the same park for QSO credit. In fact, the activators can receive park-to-park credit for such a radio contact.

VHF SOTA and POTA

Racking up lots of contacts on VHF/UHF from a summit can be a challenge, dependent mostly on the range of your gear and the ham population in the area. Most of the time, we can get four contacts without too much trouble but at times even that can be a challenge. Getting ten contacts for POTA raises the bar higher.

Bob/K0NR displays the SOTA and POTA flags on Mt Herman (W0C/FR-063) in Pike National Forest (K-4404).

We noted that most of the hams we work on 2m FM are also workable on 70 cm FM. So an easy thing to do is to ask 2m chasers (hunters) to switch over to 70 cm and work us there, doubling the number of POTA-valid QSOs. Interestingly, the SOTA QSO count recorded in the database includes these QSOs. (But you must have contacted at least four unique stations to get the summit points.)

Because Joyce and I usually activate together, we can also work each other for POTA credit. I have discovered that many POTA activator teams make it a standard practice to pull out a couple of handheld radios and work each other on 2m FM when they first set up. OK, maybe that’s not the most exciting QSO of the day, but it is allowed.  With a dual-band HT, you can make two QSOs this way. And it is a good idea to put out a call on 2m FM to work any locals that might be hunting parks. On a summit, these QSOs would not be valid for SOTA, unless one of the operators leaves the activation zone. Yes, we’ve done that, too, taking turns hiking down out of the AZ to make a quick contact.

Summary

This covers some of the things we’ve learned about doing combined SOTA and POTA activations. Again, this is with an emphasis on VHF/UHF operating. You should study the SOTA and POTA rules carefully because this article does not cover everything. However, some of the issues I’ve outlined here are not obvious from the SOTA and POTA rules, so I hope you find this article helpful.

73 Bob K0NR

How Far on VHF SOTA?

Posted on by — No Comments ↓

Adam/K6ARK recently posted this video of his 2m SOTA activation in California. Adam does a really nice job with his videos and this one is no exception. During this activation, he worked KE9AJ in Arizona at 256 miles. This was an FM QSO, with KE9AJ running 6 watts and K6ARK running over 120 watts.

In the video, he shows the 8-element 2m Yagi antenna, which has a clever folding boom design (homebrew, I assume). You’ll notice that he is carrying quite a bit of gear in his pack, including a 160w amplifier, a Yaesu FT-857, several batteries, the Yagi antenna, and antenna masts. Adam has posted other videos of VHF SOTA activity, so check out his YouTube channel for them.

Note that at 256 miles, this is definitely propagation beyond line of sight. We’ve talked about this before: The Myth of VHF Line-Of-Sight.

This has me thinking about some of my best VHF SOTA activations, which I will list here.

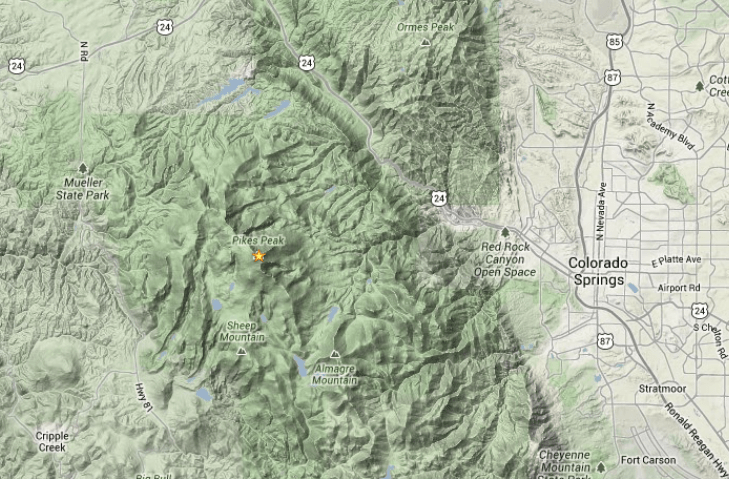

Sneffels to Pikes

In 2012, for the Colorado 14er Event, Joyce/K0JJW and I climbed Mt Sneffels (W0C/UR-001) at 14,150 feet in elevation. I worked Stu/W0STU on Pikes Peak (W0C/FR-004). We both were running 5 watts on 2m FM, with 3-element Arrow II antennas. I had an FT-817, while Stu used an HT. We made the QSO without too much difficulty, at a distance of 160 miles. Stu put together this video that shows the action on both summits.



Capulin Mountain

Capulin Mountain (W5N/SG-009) is out in the middle of nowhere New Mexico, a long distance from populated areas. My goal was to activate it (and get the points) on VHF, but I knew it would be a challenge. I put the word out to the weak-signal VHF community and used my FT-817 (5 watts) and 3-element Yagi to make contacts. My best DX was with Arne/N7KA at 184 miles. I could hear him fine on SSB but he could not copy me, so we switched to CW to complete the QSO. Arne used a 2M12 Yagi antenna with 700 watts of power vs my 5 watts.

This turned out to be a good lesson in what happens when the two stations are imbalanced with respect to RF power. My 5 watts vs his 700 watts is a difference of 21 dB. No wonder I could hear him just fine but he was struggling to copy me. Flipping over to CW narrows the receiver bandwidth, improving the signal-to-noise ratio, and was enough improvement to make the QSO.

Capulin Mountain (W5N/SG-009) VHF SOTA

Mount Scott

Mount Scott (W5O/WI-002) is a drive-up summit (elevation 2464 feet) in the Witchita Mountains of Oklahoma. It sticks up high enough to have a good radio horizon in all directions. We stopped there to do an activation in March 2018, using the Yaesu FT-90 (set for 30 to 50 watts) and the 3-element Yagi antenna.

We easily worked a bunch of stations on 146.52 MHz FM, including K5RTN in Brownfield, TX. Later, I checked the distance to Brownfield and found that it was 245 miles, which is still my best SOTA DX on 2m FM. There was probably some favorable propagation that morning, perhaps some ducting, for this to occur. K5RTN was operating from home and I am not sure about his power and antenna.

Threemile Mountain

During the 2021 January VHF Contest, we decided to activate Threemile Mountain (W0C/SP-107), which is usually accessible, even in the winter months. Because it is in the Pike National Forest (K-4404), I did a combo operation of SOTA, POTA, and VHF contest. At 10,020 feet in elevation, it is not the highest summit in the region but it has a good radio horizon in all directions.

Also, the hike is relatively short, so I packed the Yaesu FT-991 and a 20 Ah battery, which gave me more power (50 watts) on 2m and 70 cm. Not only that, I actually fired it up below 50 MHz and made some HF contacts, using single-band end-fed halfwave antennas.

I was working a few stations in Denver on 2m SSB when I heard Larry/N0LL calling me from Smith Center, KS. Larry is a well-known Big Gun on VHF with excellent antennas. I’ve worked him in past contests on various bands and modes but I was surprised how strong he was coming in at Threemile Mountain. We probably had favorable conditions on 2 meters that day but nothing exotic, to make a 372 mile QSO. I’ve worked longer distances on 2 meters but this is my best DX for SOTA.

Radio Fun on Threemile Mountain (W0C/SP-107)

Power and Antenna

Most ham transceivers have decent receivers, so the choice of radio on the receive side is not that critical. (OK, you can add a preamp in front of the receiver to improve it.) The big difference for making QSOs (or not) on 2 meters is antenna and power level.

Improving your antenna is normally the first step in improving your VHF SOTA station, because it helps on both transmit and receive. Joyce/K0JJW and I almost always use the 3-element handheld Yagi from Arrow Antenna. Arrow does not specify the gain, but various sources have measured it at 6 dBd. We have made many QSOs over the years where the extra 6 dB made the difference. An omnidirectional antenna would have come up short. I’ve been looking for a higher gain antenna to use for SOTA but have not found one that I like. Adam’s 8-element antenna is tempting but longer antennas pretty much require a mast, which adds weight to the pack. One of the benefits of the 3-element Arrow is that it is handheld, so we don’t carry a mast. Of course, having two of us activating together really helps…one person can hold the antenna while the other operates and logs. A handheld antenna with a single operator can be a challenge.

Concerning power level, the Capulin QSO with N7KA illustrates what happens when two stations are imbalanced with respect to RF power. After this experience, I did purchase a small 2m amplifier that boosts the 5 watts from the FT-817 to 35 watts. It is compact and not too much of a DC power hog.  I think we also heard an imbalance with the QSO between K6ARK and KE9AJ. KE9AJ’s signal was a bit noisy at K6ARK while K6ARK’s signal was full quieting 59 at the other end. This is not a surprise with K6ARK at around 120 watts and K6ARK at 6 watts (13 dB difference).

For higher power on 2 meters, you generally need to bring a bigger radio or an amplifier. The popular HT is generally limited to about 5 watts. For 2m FM, we’ve been carrying the Yaesu FT-90, which is a pretty compact radio and can put out 50 watts of RF power (FM only). On the Threemile Mountain activation mentioned above, we took the FT-991, which is not very SOTA friendly, but it also does 50 watts on 2 meters…and all modes.

Battery capacity also comes into play as higher power requires more DC current. The FT-90 manual says it draws 9.5 amps at full 50 watts of power on 2 meters. (We usually run it at lower power but will punch it up to 50 watts when required.) The FT-991 manual says it draws 15 amps when transmitting at full power on 2m or 70cm. My 160 watt 2m (Mirage) amplifier can draw up to 30 amps on transmit. Wowzy, that’s some real current! The point is that as you increase power, you need to look at your battery situation more carefully.

It might sound like I am suggesting that we should maintain a power balance between the two stations. That’s not the case and is often not even practical. When one station is much stronger than the other, it can be used to advantage. The stronger station is easily heard and the weaker station can point the antenna in the right direction to peak up the signal. The weaker station consistently hears the stronger station, so now the challenge becomes to just get a few seconds of successful transmission in the opposite direction. You keep trying until the weaker station manages to get through. Compare this to having two lower power stations trying to make a contact. They may not even hear each other at all because the antennas are not pointed optimally. When they do hear each other, they are both struggling to hear the other station and complete the QSO. This lowers the probability of completing the contact.

So how much power should you run on 2 meters for SOTA? Of course, More Is Better, except for the extra weight in your backpack. The difficulty of the hike comes into play…on shorter hikes, weight does not matter so much. I am finding that 5 watts is on the skimpy side. On the other hand, going much above 50 watts requires larger batteries, so I am thinking the sweet spot is around 30 to 50 watts. If I do happen to work a base station running 1kW, my signal will be 13 dB lower with 50 watts (worst-case scenario). This is just my opinion, your mileage may vary.

Summary

So can we all agree then that VHF signals can go beyond line-of-sight? These examples are basic tropospheric paths and do not include the exotic propagation modes such as meteor scatter, sporadic-e, aurora, EME, etc. I’ve used most of those modes to work longer distances but not during a SOTA activation. Most hams know that SSB and CW are more effective than FM when signals are weak. In fact, FM weak-signal performance is lousy. Still, we see multiple examples of making some long-distance contacts with FM.

73 Bob K0NR

What’s This ARDC Grant Thing?

Posted on by — 2 Comments ↓

You may have noticed announcements about the Amateur Radio Digital Communications (ARDC) making substantial grants to various amateur radio and communications technology projects. Where did this outfit come from and how do they have funds to donate?

This is my story about it, but I don’t speak for the ARDC. I am a member of the Grants Advisory Committee, which reviews the grant proposals.

My Story

My story starts with a discussion that happened a long time ago (1980s?) with Bdale/KBØG. We were talking about packet radio, networking, and other technical topics and he mentioned that a group of hams had requested and obtained a block of IP addresses. The ARDC website credits Hank/KA6M, for taking the lead on this. This block turned out to be 44.x.x.x, which was set aside for amateur radio use. At the time, I thought it was a nice thing to have but really didn’t pay much attention to it.  This 44Net or AMPRNet was managed informally until 2011 when ARDC was formed as a non-profit, public benefit corporation under IRS rules 501(c)(3).

Well, it turns out that in today’s world of everything-on-the-network, IP addresses have a significant monetary value. The ARDC Board of Directors recognized that the amateur community would not use all of the IP addresses assigned to it and that those IP addresses could be sold for significant dollars. Also, the value was time perishable because the internet would eventually transition to IPv6. So in 2019, ARDC decided to sell a portion of those IP addresses with the goal of using the proceeds to benefit the amateur radio community and digital communications, in general. More specifics to the story are available here.

The amount of money raised from this sale was not disclosed. However, the ARDC 2019 Financial Statement shows assets of approximately $109M. Yes, that is an M, as in millions of dollars. This is an unprecedented amount of money available to the amateur radio community. The basic idea is to spin out a portion of these assets as grants (say 5% annually), while maintaining and growing the principle.

Grants Advisory Committee

In 2020, Bdale pointed out to me that ARDC was taking applications for the Grants Advisory Committee (GAC). This committee reviews the grant proposals as they come into the ARDC and makes a recommendation to the Board on whether to approve them. (The final decision is with the Board of Directors.) In my semi-retired state, I was looking for ways to assist charitable organizations, so doing this role for ARDC sounded great! How can you not like helping out with a well-funded organization focused on amateur radio and communications?

At this point, I am about 10 months into the effort and I’m really enjoying it. I think everyone in ARDC sees 2021 as a building year…not everything is running like a precision machine just yet. Some paid staff have been hired which has been a huge step forward. This program is large enough that it is difficult to operate with just part-time volunteer efforts. More importantly, we have people like Rosy/KJ7RYV and Chelsea/KF0FVJ that have deep experience with non-profit charitable work. My friend (and well-known ham) Dan/KB6NU has signed on as the Content Manager.

The details of the grants program are spelled out on the ARDC website, so I won’t cover that here. I will say that if your radio club or other organization has a project they would like to pursue but is struggling to fund it, consider asking for a grant from ARDC. What kinds of things has ARDC funded? College scholarships in partnership with the ARRL Foundation, development work on the M17 protocol (open-source digital voice), ham stations at several universities, repeater installations and upgrades, radio club communications trailers, and much more. The list of 2021 grants that have been funded is on the website.

As you can probably tell, I am excited to be a part of this worthy effort and helping to make it happen.

73 Bob K0NR

What Is a Valid QSO?

Posted on by — 1 Comment ↓

Ham operators make radio contacts on a routine basis. We call another station or another station responds to our call, we exchange some information, maybe chat for a while and then finish the contact, clearing out with our callsigns. Most of the time we clearly know whether we had a valid radio contact, commonly referred to as a QSO.

Sometimes it is not so clear. I hear a DX station calling CQ…I call him (giving his callsign and my callsign) and I hear him say “your report is 5 and 9” so I say “QSL and 73” and put him in the log. Did I really work him? Maybe not. Did he hear my callsign correctly? Was he even talking to me? Not sure.

The question of what constitutes a valid radio contact has been asked for decades. Edward Tilton W1HDQ in the “The World Above 50 Mc” column, QST Magazine, March 1957 wrote this:

As amateurs we are presumed to be engaged in communication. This implies exchange of information, not just identification of one another. Thus, a reasonable definition of a QSO, for amateur purposes, would seem to be an exchange of useful information. Otherwise, why communicate at all?

Tilton goes on to say:

The minimum exchange for two-way work to be considered a contact has been fairly well standardized on a two-stage procedure: positive identification of calls at both ends, and the complete exchange of signal reports. The latter is about the shortest item of information that can be transmitted between two stations that will have any meaning at all. The form varies with various operating activities, but the basic idea of mutual exchange remains in all.

Actually, the exchange of signal reports may be replaced by some other “exchange of information.” For example, during VHF contests the standard exchange of information is usually the 4-character grid locator. Signal reports are not usually given.

The IARU Three Steps

The International Amateur Radio Union (IARU) in their HF Manager’s Handbook and VHF Manager’s Handbook says:

A definition for a valid QSO is:
A valid contact is one where both operators during the contact have
1. mutually identified each other
2. received a report, and
3. received a confirmation of the successful identification and the reception of the report.
It is emphasized that the responsibility always lies with the operator for the integrity of the contact.

Let’s take a practical look at the IARU definition and what it means:

1. mutually identified each other

You exchange callsigns with the other station (making sure you have them correct). This tends to happen naturally as part of the calling process in amateur radio.

2. received a report

You exchange a signal report or some other information (grid locator, contest exchange, …)

3. received a confirmation of the successful identification and the reception of the report.

You acknowledge that you have the information from 1 and 2, by saying “QSL”, “Thank you” or something similar.

Some Scenarios

The rigor applied to making a contact does vary depending on the specific situation. Here are a few specific examples that will help explain this.

FT8

The WSJT-X software used for making FT8 contacts has IARU Steps 1, 2, and 3 embedded into its communication protocol. FT8 is intended to work well under weak-signal conditions, so the software implements a rigorous use of information exchange. Appropriate use of this software guarantees a valid QSO.

These are the FT8 messages for K0NR working W1AW.

The QSO starts with one station calling another (callsigns are exchanged). The standard FT8 messages (see figure) show that KØNR calls W1AW with grid locator included (TX1). Typically, W1AW would respond by calling KØNR and providing a signal report. (Signal reports are in decibels, just a number.) KØNR responds with TX3, which does two things: sends “R” to indicate that the signal report from W1AW was received AND sends the signal report of -15 dB to W1AW. When W1AW receives that transmission, it knows that callsigns and signal reports have been exchanged and sends RR73 to complete the QSO. KØNR may respond with a 73 message, but that is not required for a valid QSO.

I realize that if you haven’t worked FT8, this may be confusing. If so, just note that the design of the WSJT-X software leads the user through these specific messages to ensure that the three IARU steps happen.

VHF Contest QSO With Weak Signals

Radio contacts during VHF contests can be a bit casual: one operator calls another (callsigns exchanged) and they tell each other their grid locators. IARU Step 3 (the QSL or acknowledgment) may be assumed or perhaps one of the operators just says thanks or 73 to indicate the contact is complete and they are signing clear. But when the signals are weak, VHF operators tend to be more careful about making sure they made the contact.

Here’s a weak-signal CW QSO between KØNR and W9RM:

KØNR calls W9RM
KØNR: W9RM W9RM W9RM de KØNR KØNR KØNR

W9RM responds and sends his grid (DM58)
 W9RM: KØNR KØNR de W9RM DM58 DM58 DM58 BK

KØNR responds with multiple “R”s to indicate that the grid was received and sends his grid (DM78)
KØNR: R R R DM78 DM78 DM78 BK

W9RM responds with multiple “QSL”s to acknowledge that the information is complete
W9RM: QSL QSL QSL de W9RM BK

KØNR would probably reply with “73 73 73” but that is not necessary for a valid QSO

HF Contests

HF contests are fast and furious, with a high value placed on quickly making contacts. Thus, they tend to use the bare minimum to complete a QSO. Let’s take the example of a Big Gun station making multiple contacts in succession, otherwise known as “running.” Here, ZF1A is working the CQ Worldwide DX Contest with a number of stations calling him. He initiates the radio contact with “QRZ?”

ZF1A calls QRZ?
ZF1A: ZF1A QRZ?

KØNR calls ZF1A by just saying his callsign
 KØNR: Kilo Zero November Romeo

ZF1A calls KØNR and gives the contest exchange: signal report (always 59 in a contest) and CQ Zone (08 in this example)
ZF1A: KØNR 59 08

KØNR responds with a “Roger” to indicate the information was received and provides a signal report and CQ Zone 04
KØNR: Roger 59 04

ZF1A acknowledges the information and calls for the next station
ZF1A: Thank you, ZF1A QRZ?

This is a fast and tight exchange. Note that to save time, KØNR did not say ZF1A’s callsign during the contact. It does have the potential of a broken QSO if the operators are not paying close attention. KØNR must be sure he is hearing ZF1A’s callsign correctly and that ZF1A sent KØNR’s callsign correctly. Similarly, ZF1A will make sure he has KØNR’s callsign and exchange before moving on. If ZF1A is not sure of KØNR’s callsign and exchange, he will ask for a repeat. Sometimes the running station just calls QRZ? to complete the contact so IARU step 3 is implied. (If ZF1A did not have confidence that the QSO was complete, he would have asked for a repeat.)

Parks On The Air (POTA)

From the POTA rules: “POTA does not require a formal exchange, though many activators will wish to receive real signal reports, names and locations.”  My experience is that the park Activator usually sends a (real) signal report and the park number (e.g., K-4404). The Hunter usually sends a real signal report and state. Something like this:

KØNR calls CQ POTA
KØNR: CQ CQ Parks on the air Kilo Zero November Romeo

KØJJW answers him
 KØJJW: KØNR this is KØJJW Kilo Zero Juliet Juliet Whiskey

KØNR responds with the signal report and park number
KØNR: KØJJW you are 57 in park K-4404

KØJJW acknowledges the information and provides a signal report and state.
KØJJW: Roger. You are 5 6 into Colorado. Thanks for the activation.

KØNR confirms that the QSO is complete and moves on to the next station
KØNR: QSL and thank you, this is Kilo Zero November Romeo, Parks On The Air

When conditions are marginal, a POTA QSO will naturally tend to have signal reports and QSL messages sent multiple times to make sure that the information gets through.

Summits On The Air (SOTA)

The general SOTA rules state “QSOs must comprise an exchange of callsigns and signal reports, it is strongly recommended that the summit identifier be given during each contact.” SOTA contacts are similar to POTA contacts in terms of format, except the summit number (e.g., W0C/FR-004 ) is exchanged instead of the park number.

Time Constraints

Meteor scatter (MS) is an interesting case, mostly because it can take a long time to complete the QSO.  The two stations are transmitting to each other on alternating time windows hoping that a meteor will streak by and leave an ionizing trail so that a radio contact can be made. It is common for an MS QSO to take 30 minutes or longer.

The message sequence is similar to the FT8 example, so I won’t repeat it here. Imagine sitting in front of your computer patiently waiting for the right meteor burst to occur so that 1) callsigns are exchanged 2) signal reports are exchanged and 3) a final acknowledgment occurs. This raises the question of how long is too long to count as a valid QSO? I don’t know of a specific standard but most people would agree that if the three steps occur over several days, it is probably not a valid QSO. It seems like most hams working MS complete their contacts within a few hours, typically less.

One more question: what information do you need to record concerning the QSO? This will also vary depending on the circumstances, but most hams log callsign, signal reports, time (UTC), frequency or band, and mode. Note that Logbook of The World does not store signal reports but does require and store the time of the QSO, along with the band and mode. Another example: when submitting a contest log, the context exchange from both stations must be included (and these are checked against other submitted logs). The point is you need to be thinking about how the QSO information is going to be used and recorded. [Thanks, Bob/WØBV]

Summary

The three steps in the IARU definition of a valid QSO can be summarized as: 1) exchange callsigns 2) exchange signal report or other information and 3) confirm that #1 and #2 happened. This still leaves some gray area when it comes to deciding whether a QSO was valid or not. Most of us have had that funny feeling at the end of a marginal contact: should I put this in the log or not? This is where the final IARU advice applies: The responsibility always lies with the operator for the integrity of the contact.

Get Your General License, Colorado

Posted on by — No Comments ↓

The Technician Class License is the entry-level ham radio license in the USA. The next step up is the General Class License which provides operating privileges on the high-frequency bands. If you want to work the world with ham radio, you should seriously consider going for the General license.

The Tri-Lakes Monument Radio Association is offering a blended (online and in-person) license class to assist you in moving up to General. The class starts on Nov 6th and will have five sessions: two in-person sessions in Monument, CO plus three online sessions via Zoom.  The final session is in-person and includes the FCC exam. (Complete schedule listed below.)



The General License provides access to regional and worldwide communications on the HF bands via ionospheric skip, greatly expanding operational capabilities!

• Upgrade from Technician to General Class radio privileges
• Pass your FCC General Class amateur license exam Nov 20
• Live equipment demonstrations and activities
• Learn to operate on the HF bands, 10 Meters to 160 Meters
• Gain a deeper understanding of radio electronics and theory
• Take the next step with antennas, amplifiers, digital modes

The registration fee is $30 ($20 for those under 18 years of age). In addition, students must have the required study guide: HamRadioSchool.com General License Course,
Third Edition, effective 2019 – 2023, $24.95. A current FCC Technician License is required for registration.

More information and registration page here: https://w0tlm.com/radio-classes/general-registration
For questions, email: bob@k0nr.com

Schedule

Session 1, Sat Nov 6, 1-5 pm:  In-Person, Tri-Lakes Chamber of Commerce Meeting Room, Monument, CO. Ch.Ø-3 instruction
On-Demand Video Lesson (online video at your convenience).  Ch.4 instruction
Session 2, Tue Nov 9, 6-7 pm:  Live Zoom meeting.  Ch.1-4 review and Q&A
Session 3, Thur Nov 11, 6-8:15 pm:  Live Zoom meeting.  Ch.5 instruction
Session 4, Sat Nov 13, 1-5 pm:  Live Zoom meeting.  Ch.6 instruction
Session 5, Sat Nov 20, 1-5 pm:  In-Person, Tri-Lakes Chamber of Commerce Meeting Room, Monument, CO.  Wrap-up, review, VE Exam session.



Tips and Tools for Managing Logs

Posted on by — 7 Comments ↓

Lately, the majority of my radio activity has been SOTA and POTA activations, sometimes simultaneously. The logging requirements for the two programs are different so I often need to adjust the log file before submitting it. Even more common, I need to double-check and fix errors in my SOTA and POTA logs. Some of this comes from the idiosyncrasies of the logging software but often the errors are introduced by the operator. (That would be me.)

The SOTA CSV Log Editor

Here are a few tools and tips to assist with your portable logging.

SOTA and POTA Logging Tools

For SOTA, Joyce/K0JJW and I normally just use a paper log. If the number of QSOs is small, the paper method is easy and reliable. Later, I use the SOTA CSV Log Editor by G0LGS to enter the information into a CSV (Comma Separated Variable) file. This program is reliable and easy to use. This Windows program uses CSV for the log files but it can also export the log in ADIF (Amateur Data Interchange Format).

For POTA activations, we tend to have a larger number of QSOs so I try to log them in real-time on a computing device. The HAMRS logger is a relatively new logging program by Jarrett/KB0ICT. It runs on multiple platforms, including Windows, Linux, Mac, iOS and Android. I’ve been using it on Windows, an iPad, and my iPhone. The user interface is tuned for portable operating with just enough features and not a lot of fluff. There are some bugs here and there but Jarrett continues to release bug fixes and new features at a steady rate. I have not encountered any serious issues and I really like the implementation. HAMRS exports files in ADIF format.

CSV Files

A CSV file just has the variables of interest separated by commas, usually one QSO on each line. These files are a bit cryptic but can be read by humans with just a little effort. Below is a CSV file generated for a SOTA activation. Note that the first line contains the header information that defines the variables in the subsequent lines.

An example of a CSV file from a SOTA activation.

Sometimes it is very helpful to just be able to edit a CSV file directly. For example, if Joyce/K0JJW and I worked the same set of chasers from a summit, I can create a new log file by doing a find/replace of my callsign with her callsign. For this, I use a simple text editor such as Windows Notepad. Its native file format is plain text so it won’t inadvertently add in additional formatting or characters. Excel (or another spreadsheet) will handle this format but make sure you output a clean CSV file.

ADIF Files

ADIF is the most flexible and portable file format for ham radio logging. It can be uploaded to Logbook of The World and imported into most comprehensive logging programs. ADIF files are a bit more complex, using Data Types, Enumerations, and Fields to produce a flexible file format that is also human-readable.

ADIF file from SOTA CSV Log Editor,  for a SOTA activation.

Again, a simple text editor (Notepad) is useful for making edits to an ADIF file. The particular file shown above was exported from the SOTA CSV Editor with each field on its own line. This makes each QSO easier to read but the file has a lot more lines in it.

The program ADIF Master is very good at viewing ADIF files and making changes to them. I often use it to do a final check of the log before submitting it.

ADIF Master is very useful for viewing ADIF files from SOTA, POTA or other events.

When ADIF Master saves an ADIF file, it puts each QSO on one line. The fields and variables remain the same, but the spacing changes. This reduces the overall length of the file (number of lines) but it can be more difficult to read.

ADIF Master flattens the ADIF file by putting one QSO on a line.

Sometimes you might need to convert between CSV and ADIF file formats. There are online tools to do this but I have not used them enough to comment.

I am not going to try to explain the various fields and labels used in these file formats. For the ADIF format, take a look at the detailed specification here: https://adif.org/. A few times, I have needed to find a specific field that was missing and add it to an ADIF file. ADIF Master can do this for you, but you must know the exact name of the field.

These are a few things I’ve learned along the way playing around with SOTA and POTA logs. I hope this is helpful.

73 Bob K0NR

Yellowstone and Grand Teton: SOTA and POTA

Posted on by — No Comments ↓

Visiting Yellowstone and Grand Teton National Parks is a favorite trip for us. It is a 9-hour drive to get there from Colorado, so we can make it in a day.  In September, we visited these two parks with a blend of activities in mind: RV camping, hiking, viewing wildlife and ham radio. The ham radio part means Summits On The Air (SOTA) and Parks On The Air (POTA).

The Teton mountains tower above the Snake River.

Our trip started from Monument, CO, followed by a stop at our cabin near Trout Creek Pass. Heading north, we spent one night at Steamboat Lake State Park (Colorado), which broke up the road trip into smaller sections.

A few of the many buffalo (bison) in Yellowstone National Park.

Grand Teton NP

Grand Teton NP listed 27 activations for POTA (POTA K-0031) which is really not that many activations for such a well-known national park. The park and the surrounding national forests have many SOTA summits available, some quite difficult to climb (such as 13,770 foot Grand Teton).   We camped two nights at Colter Bay RV Park, inside the park. This is a decent RV-style campground with full hookups and campsites packed in a bit tight.

Joyce/K0JJW campsite operating POTA from the Grand Teton campsite.

Our usual POTA station is the Yaesu FT-991 driving a single-band end-fed halfwave (usually 40m, 20m or 17m) supported by a fishing pole and powered by a 20 Ah Bioenno battery. Joyce/K0JJW likes to use a paper log but I usually log my contacts with HAMRS, either on my notebook PC or an iPad. HAMRS is a relatively new logging program that runs on most operating systems (Windows, Mac, Linux, iOS, Android, etc.) It is tuned for portable operating, with templates for SOTA and POTA. Check it out, if you haven’t tried it.

One unfortunate surprise while operating from the campsite was a ton of RFI coming from the electronic devices in use by the herd of RVs. The noise floor on 20m was S5— not so good.  It seems that today’s RV enthusiast brings along complete wireless network support with internet access points, WiFi routers, and their associated Part 15 emissions. Oh, well.

After setting up on 20m SSB, K0JJW and I both completed 10 QSOs with some difficulty. We were clearly being heard but we had trouble digging signals out of the noise.

Next up was a VHF SOTA activation on Signal Mountain (W7Y/TT-161). This is an easy-to-access drive-up summit with a great view, highly recommended with or without a SOTA activation. We debated on whether to use HF for SOTA on this trip. Normally, we’ve stuck to VHF/UHF on SOTA summits, as part of the Height-Above-Average-Terrain experience. However, knowing that Northwest Wyoming is a bit sparse for VHF activity, we could easily get skunked on a SOTA activation (less than 4 QSOs). Despite that, we opted to stick with VHF for SOTA and focus on a successful activation (1 QSO or more), with or without the SOTA points. On Signal Mountain, we worked two stations on 2m FM, including Steven/KB7ITU in Rexburg, ID, about 60 miles away. (Hey, we worked another state on VHF!)

Speaking of VHF, we used our dualband mobile (IC-2730A) to listen to the national park repeaters while we travelled through the park. Our dual-receive radio always has 146.52 MHz on one side and “something else” on the other side. When inside large national parks, we’ll set the second receiver to a national park frequency. These are generally conventional FM in the 162 to 173 MHz range. I won’t list the Teton and Yellowstone frequencies here but you can find them with a little searching on the interwebz. For example, see wiki.radioreference.com for Yellowstone NP frequencies.

Yellowstone National Park

Yellowstone ( POTA K-0070 ) had only 22 POTA activations, not that many considering it is the nation’s first national park. It also has quite a number of SOTA summits of varying difficulty.

We camped two nights at Grant Village campground, a basic national park campground. The campground had no hookups but the campsites are well spaced with many trees and flush toilets. (The only problem we had was when the park service booked another group of campers onto our campsite one night.)

Joyce and our RV (Rocky Victoria) at the Grant Village campsite.

During a previous visit to Yellowstone, we activated Lake Butte (W7Y/PA-219). On this trip, we had our eye on Mount Washburn (W7Y/PA-163), a well-known 10k summit and popular hike, but the road that provides access to it was closed for the summer due to construction. (OK, maybe next time.)

Bob/K0NR operates 2m FM from the unnamed summit W7Y/TT-139.

Instead, we decided to try an unnamed summit 8770 (W7Y/TT-139) that was relatively easy to access but had not been activated for SOTA. We found some trip reports that said there is a nice trail to the summit and the only complaint was that the summit does not have a view due to the many trees.  We parked at the Divide Trailhead, about 12 miles west of Grant Village. The trail is 1.8 miles in length (one way) with 700 feet of elevation gain. So not too difficult but a real hike.  The summit is broad and sure enough with lots of trees, so no view. Practice normal bear precautions on this trail.

Practice standard bear precautions in this area.

Again, we opted for VHF SOTA, knowing that we might not get enough radio contacts for points…but we only needed one contact to qualify as the first activation. We worked two mobile stations passing through the park on 146.52 MHz. Yes, it is good to always be monitoring the calling frequency. You never know who is going to show up.

For POTA, we noted that the Continental Divide Trail National Scenic Trail (K-4558) passes through Yellowstone NP, which would allow for a double activation.  The CDT has always been special to me as it passes through Colorado and provides some of the most scenic hiking in the state. It only had 15 activations listed at that time, two of those were ours from when we activated it a month earlier, in Colorado. We choose the Old Faithful area as a good place to activate Yellowstone NP ( K-0070) and the CDT. We set up near the edge of the parking lot, away from the crowds. Again it was the FT-991 driving the endfed halfwave on 20m SSB. It was midday, so we expected good 20m propagation (and a nice pileup for Yellowstone) but the band was not cooperating. We both made at least 10 QSOs for a successful activation, so we count that as a win, but the pileup never happened.

Besides the radio operating, we had a good time touring through the park and looking for wildlife. We saw tons of buffalo, not quite so many elk and deer, but no bears or wolves. We have had better wildlife viewing on previous trips but it was still fun.

Heading South

Then it was time to start home, heading south out of Yellowstone back through Grand Teton. Of course, we were monitoring 146.52 MHz, when we heard Lorene/KG6MWQ  on unnamed summit 7586 (W7Y/TT-164). She was on the summit with AE6NH, operating both HF and VHF. It was great to catch a VHF activator in Yellowstone. This was the first activation for TT-164, so congratulations to both of them.

Two POTA activators smiling for the camera (Joyce/K0JJW, Bob/K0NR).

We decided to make a stop at the Colter Village area on the way through Grand Teton NP. Our first priority was to use the shower facilities there. Our second priority was doing another POTA activation.

Yaesu FT-991 set up on small camp table, with microphone and two sets of headphones.

This time we set up in a large parking lot, away from anything that might produce RFI. Again, it was 20m SSB using the halfwave antenna supported by a fishing pole. We sat near the RV on our camp chairs and table. Our typical configuration is to have two sets of headphones so both of us can copy well. We just use the standard handheld microphone which is easily passed between us when we change operators.

Typical antenna setup with fishing pole inserted into a plastic pipe attached to the RV ladder. A wire antenna is hung from the end of the pole.

Later in the day, we exited the park and headed south through Jackson, WY. We stayed overnight at a farm near Afton, WY which is surrounded by Bridger-Teton National Forest (K-4535). Of course, we needed to do one more POTA activation. We searched around for a usable spot to park and then fired up on 20m SSB. Propagation was OK but not great but we got it done.

The next day, we were up and going early, driving the rest of the way home to Monument. It was a wonderful road trip that blended sightseeing, hiking, camping, and ham radio. Let’s go do it again!

73 Bob K0NR

One Radio To Rule Them All (Ham, GMRS, FRS, MURS)?

Posted on by — 13 Comments ↓
The common Baofeng UV-5R can transmit and receive on a wide range of frequencies…but not necessarily within FCC rules.

From time to time, the question is raised about using radio equipment in multiple radio services. One common example is a licensed radio amateur that wants one radio to cover the Family Radio Service (FRS), General Mobile Radio Service (GMRS), and the 2m/70cm ham bands. Some people also want the Multi-Use Radio Service (MURS)…or maybe even marine VHF or aircraft VHF. The thinking goes that if one radio can transmit and receive on all these frequencies and that person is authorized to use those frequencies, then one radio can do it all.

This seems like a reasonable objective but the problem is that the FCC has a few rules and regulations that come into play.  This leads to an important note: I am writing about the FCC rules and regs here…you may choose to ignore them but that’s on you.

Part 97: Amateur Radio Service

First, the good news. The Amateur Radio Service, governed by FCC Part 97, has very few restrictions on the type of equipment you can use. Heck,  you can build a transceiver from parts and put it on the air. So the ham rules are not going to be a major limitation.

Part 95: FRS, GMRS and MURS

FRS, GMRS, and MURS radios are governed by FCC Part 95.  Section 95.591 says this about FRS radios:

§ 95.591 Sales of FRS combination radios prohibited.

Effective September 30, 2019, no person shall sell or offer for sale hand-held portable radio equipment capable of operating under this subpart (FRS) and under any other licensed or licensed-by-rule radio services in this chapter (devices may be authorized under this subpart with part 15 unlicensed equipment authorizations).

Section 95.1761 says this about GMRS transmitters:

(c) No GMRS transmitter will be certified for use in the GMRS if it is equipped with a frequency capability not listed in § 95.1763, unless such transmitter is also certified for use in another radio service for which the frequency is authorized and for which certification is also required. No GMRS transmitter will be certified for use in the GMRS if it is equipped with the capabilities to operate in services that do not require equipment certification, such as the Amateur Radio Service. All frequency determining circuitry (including crystals) and programming controls in each GMRS transmitter must be internal to the transmitter and must not be accessible from the exterior of the transmitter operating panel or from the exterior of the transmitter enclosure.

(d) Effective December 27, 2017, the Commission will no longer issue a grant of equipment authorization for hand-held portable unit transmitter types under both this subpart (GMRS) and subpart B of this part (FRS).

The Midland MXT400 is a typical GMRS mobile transceiver.

Similarly, MURS radios have this restriction (Part 95.2761):

(c) A grant of equipment certification will not be issued for MURS transmitters capable of operating under both this subpart (MURS) and under any other subparts of this chapter (except part 15).

The FCC is saying (requiring) that FRS, GMRS and MURS radios must work on their designated frequencies and nothing else. At one time, it was legal to sell a combination FRS/GMRS radio but the FCC has specifically removed that option. Part 95.1761 seems to leave an opening for a GMRS radio that is also certified for use in another radio service, but that is a very thin opening and it specifically excludes the Amateur Radio Service.

Now, why would the FCC put these restrictions in the regulations? The answer is pretty simple: these radio services are intended to be used by everyday, non-technical folks. The radios need to be simple to use and not include the capability to wander off onto any old frequency. Hence, the rules lock down the frequencies that the radios can use.

(As a side note, this regulatory approach is good for amateur radio. Imagine if FRS radios had Channel 30 set up to transmit on 146.52 MHz, with a note in the manual that says “only use this channel if you have an amateur radio license.” We would have a crapton of unlicensed operating on 2 meters.)

Part 90: Private Land Mobile Radio Services

Part 90 regulates a broad range of land mobile radio, including public service, police/fire, search and rescue, forestry, utilities, and businesses. Licensing is very specific under Part 90. A radio license will specify a particular set of frequencies allowed, specific power levels and emission types, and even the allowed operating location of the radios.

Radios designed for Part 90 are usually programmed by a radio tech to operate only those specific frequencies that a licensee is authorized to use. This results in a relatively simple operating set up with the user just selecting from the preset channels on the radio. Part 90 radios normally cover a wide range of frequencies so that the manufacturer and the radio shop can sell one radio model to any licensed user.

In many cases, these Part 90 radios cover the adjacent amateur bands, such as 2m and 70cm. (For example, the Anytone AT-D878UV is Part 90 certified and covers 140-174 MHz and 400-480 MHz.)   So this does open up the possibility of using a Part 90 radio under a Part 90 license and using it on the ham bands. A typical scenario is when a Search and Rescue member has a Part 90 radio set up to use the S&R frequency as well as the 2m/70cm amateur bands. The key to this is starting with a radio that is Part 90 certified and then programming it for the amateur band.  Of course, you need to be authorized to use the Part 90 frequency and have an amateur radio license.

Getting Creative on Radio Configuration

A few years ago, Anytone Tech tried to market the TERMN-8R VHF/UHF radio as legal for the ham bands, GMRS, MURS and Part 90 use.  An early review of this radio is here on the PD0AC blog. Basically, the radio had three distinct operating modes: GMRS, MURS, and Commercial/Normal. Initially, the FCC approved the radio but later took a closer look and canceled the authorization. The TERMN-8R is still available but without the three modes. It is marketed as a Part 90 radio that also does the amateur bands.

The Anytone TERMN-8R handheld transceiver.

I recently became aware of the Anytone AT-779UV which is sold in the USA as a Part 95 GMRS radio. However, using the programming software, the radio can be configured to cover the 2m and 70cm amateur bands or a much broader range of frequencies (136-174 & 400-470 MHz). If you change the radio configuration to operate on the ham bands (or wider), the radio is no longer Part 95 certified. The configuration via software takes some knowledge and effort so it is not a mode that you can easily switch back and forth. It is really no different than other software-programmable radios.







Wrap It Up

So there you go, your dream of One Radio To Rule Them All (FRS, GMRS, MURS, and the 2m/70cm ham bands) is not going to happen. At least not legally. You can configure a radio to do this…but it will not meet FCC regulations.  However, you can configure a Part 90 radio to operate legally on Part 90 frequencies and on the amateur bands.

How About A Mic-Centric Mobile Transceiver?

Posted on by — 14 Comments ↓

Most automobiles don’t provide a lot of room for mounting ham radio transceivers. (Obviously, their design priorities are wrong!) Because of this, many ham transceivers have removable control panels that can be mounted on the dashboard and the main radio is installed somewhere else, such as under a seat.

Midland radio is doing some interesting things with micro-sized radios for the General Mobile Radio Service (GMRS). The MXT275 MicroMobile® Two-Way Radio puts all of the radio controls and the display in the handheld microphone.

The Midland MXT275 MicroMobile® Two-Way Radio has all of the controls and display in the microphone.

Yaesu FT-8500

This radio reminded me of an old Yaesu radio, the FT-8500, which had almost all of the controls crammed onto the microphone. (Someone named the microphone “Mr. Potatohead” which seems appropriate, but I did not name it.) This radio had the display on the radio body, which seems like a limitation. At any rate, this rig was not very popular. I do not know anyone that owned one.

The Yaesu FT-8500 had almost all of the radio controls crammed onto the microphone.

So the FT-8500 was not a big hit but maybe it is time for another go at a microphone-centric transceiver. I am thinking a basic 2m/70 cm FM radio could use this approach to ease the mobile installation challenge.

Simplicity in Design

You may be thinking that a GMRS radio is fundamentally simpler than a typical VHF/UHF ham transceiver.  This is true…a typical GMRS radio has 22 channels that might have options such as CTCSS tones and repeater offset. A typical ham transceiver has more frequencies, more features, and lots of settings required.

However, if you consider the typical FM transceiver setup and usage, most people set up the memories for the repeater and simplex channels they use, usually via programming software. After that, operating the radio is 99% just selecting the desired memory channel. This kind of usage lends itself to having a simpler set of controls that can be incorporated into the microphone. This approach will require a good understanding of user needs and some careful design work to create a radio that works well.

This type of radio design will probably not work for everyone. There will be hams that want every feature available all of the time.  That’s just fine. However, the microphone-centric approach may be a good fit for installation in the “other car” that doesn’t get used quite so much. Or in the case where a family member objects to having a Real Radio cluttering up the dashboard.

Using this type of radio will be a lot like using a handheld transceiver, with the addition of a microphone cable,  but no batteries or antenna cable drooping down. The Midland radio has the speaker in the radio unit but it may be better to put it in the microphone (with the option of plugging in an external speaker.)

I think this idea would well for some number of mobile radio installations. What do you think?

73 Bob K0NR

13 Sept 2021 Update:

Ask and ye shall receive. This radio just popped onto the scene.

25 watts, about $110 plus shipping
https://www.446shop.com/Product/Pro1764.Html



SOTA W0C 10-10-10 Challenge Report

Posted on by — No Comments ↓
Joyce/K0JJW climbing London Mountain, with Mosquito Peak in the background (right).

We had a great time going after the W0C 10-10-10 SOTA Challenge. (See 2021 Colorado SOTA and 14er Event ) For activators, the objective was to activate 10 summits higher than 10k feet in 10 days. It turned out that some previous commitments would not allow us to do 10 days of activating, so we smushed 10 summits into 6 days. With careful choice of summits and doing multiple summits in a day, we put together a plan.

Bob/K0NR and Joyce/K0JJW on Puma Peak.

Saturday and Sunday started off with the Colorado 14er Event, so we opted to do Pikes Peak on Saturday and Mount Evans on Sunday. These are both drive-up summits, so not a lot of hiking. As previously reported, we had some good luck with 1.2 GHz from those summits. Then, on Monday we hiked Puma Peak and Little Puma, two 11k summits in South Park. On Tuesday, we did three summits on one day: Dicks Peak, 10090 and 10715. These three hikes were not particularly difficult but doing all three made for a full day.

Map of the ten summits that were activated.

On Wednesday, we took the Jeep up to Mosquito Pass and hiked two 13ers: Mosquito Peak and London Mountain. We had previously activated those two summits in 2018. Finally, on Thursday, we did our tenth summit with Walt/W0CP and Jerry/K0ES, one of our favorites: South Monarch Ridge. Walt and Jerry worked the HF bands while we did VHF/UHF. That was a slacker day, because we rode the tram up from Monarch Pass.

Bob/K0NR standing next to the Jeep with Mosquito Peak in the background.

The weather was consistently fantastic, with no thunderstorms in sight. The smoke from western wildfires was thick at times and can be seen in some of the photos.

The Bands

As usual, we operated above 50 MHz, focusing on 2m, 70cm and 23cm FM operation. Most of the contacts were on 2m FM but we had significant activity on the other bands. The 1.2 GHz work was really fun: Using 1.2 GHz in the Colorado 14er Event. I made 162 contacts and Joyce made 94, for a total of 256 for the week. Not bad!

Thanks to all of our chasers and fellow activators:  AC0FT, AC0FY, AC0V, AD1CT, K0AVU, K0BEJ, K0EHR, K0ES, K0FYR, K0GPA, K0GPA, K0MGL, K0MOS, K0REW, K0SJP, K0TRD, K1DDN, K5RHD, K6TUY, K7ASB, KA4EPS, KB0KQI, KB6VHF, KC0PBR, KC3BHI, KC5CW, KD0MRC, KD0VHD, KD0YOB, KD8EQA, KE0BTX, KF0DGK, KF0FOG, KG5APL, KJ4DER, KL7GLK,
KL7IZW, KM4PEH, KM5TY, KN0MAP, KX0R, KX3DX, N0DET, N0EMU, N0IPA, N0IVN, N0KM, N1SMB, N1XCO, N8XBD, W0ADV,
W0BV, W0CP, W0JSL, W0OOD, W0RW, W1KGH, W3REM, W5IG, W6AUN, W7UM, WA0KXO, WB0JNS, WB0TNH, WZ0N

Challenge Results

The results for the W0C 10-10-10 Challenge have been posted, for both activators and chasers. Here are the Activator results:

W0C 10-10-10 Activator List

Six activators met the challenge of doing at least 10 summits during the event. That was our goal…not pursuing the top of the list but we did want to get 10 summits done. I am fifth on the list and K0JJW came in at sixth. We had the same number of SOTA points because we did the same summits. I had more QSOs though.

It was a fun event and we were happy to be able to activate 10 summits. Fortunately, the weather was good, otherwise we might have gotten rained out on the longer days.

73 Bob K0NR

My POTA Activation Guidelines

Posted on by — 2 Comments ↓

Joyce/K0JJW and I have been doing Parks On The Air (POTA), in addition to our normal Summits On The Air (SOTA) activations. Sometimes we do both simultaneously.  (See More on SOTA and POTA.) SOTA will probably continue to be our top priority because, well, you just can’t beat operating from the summit of a mountain.

Bob/K0NR doing a SOTA plus POTA activation on Threemile Mountain (W0C/SP-107) and Pike National Forest (K-4404).

SOTA and POTA

The programs have a lot in common but still have some significant differences. One of the key differences is that SOTA inherently puts you outdoors and away from your vehicle. This happens naturally if you hike some distance to get to a summit. But even on a drive-up mountain, the rules (W0C ARM) say:

Operations must not be in, or in the close vicinity of a motor vehicle, cannot use a permanent electrical power source, nor use a fossil fuel generator in any fashion. No part of the station may be connected in any way with the motor vehicle. All equipment must be operated from portable power source (batteries, solar cells, etc).

I have come to appreciate the wisdom of these restrictions as it helps keep the program “backpack portable,” without being overly restrictive. POTA does not have these restrictions, so it is common to see POTA activators operating from inside vehicles, inside RVs, even inside buildings using commercial power. Quite different from SOTA and I suppose that’s just fine. It does provide a higher degree of flexibility and radio hams can choose to participate in a manner that works for them. Certainly, this is a good thing for physically challenged individuals.

Joyce/K0JJW operating from a park picnic table, using the FT-991 and a Bioenno battery pack.

Here is a definition of “park” as it applies to national, state and local parks.

Park (noun):
an area of land, usually in a largely natural state, for the enjoyment of the public, having facilities for rest and recreation, often owned, set apart, and managed by a city, state, or nation.

The main idea of visiting a park is for people to enjoy being outdoors in a natural setting.

My POTA Rules Guidelines

Everyone gets to decide “how to POTA” as long as they stay inside the POTA rules.  We’ve adopted these guidelines to keep POTA oriented towards outdoor, portable radio operating.

  1. Set up outdoors Get outside the vehicle and find a place to set up outdoors. At a picnic area or campsite, this might be using a picnic table or it might be setting up on a stump, on a rock, or on the ground. Whatever works. Even a tailgate-style operation is better than just sitting in the car.
  2. Take a hike Before or after the activation, take a hike. Get some exercise and explore the park. A mile or two of walking in the forest is usually a good thing.
  3. See the park Some parks are not very hikeable, but you can still explore what is special about the place. Look around to see what is interesting about the park and why it exists.

Note that these are guidelines and not strict rules. This is what we try to do for a POTA activation. There will be times when this is not practical and that’s OK, too. Sometimes we’ll do a Drive-Up/Drive-By activation when time is limited or the weather is bad. For example, I recall a recent winter activation in K-4407 where the temperate was -3 deg F. We stayed in the truck for that one!

So keep on POTAing and having fun with ham radio.
These are my thoughts, what do you think?

73 Bob K0NR

Using 1.2 GHz in the Colorado 14er Event

Posted on by — 1 Comment ↓

Last weekend we held the Colorado 14er Event (Aug 7 and 8), the annual mountaintop event in Colorado. A group of us used this weekend as an opportunity to make 1.2 GHz (23 cm) Summits On The Air (SOTA) contacts: K0NR, K0JJW, KM4PEH, K5RHD, W0ADV, KL7IZW, W0RW, KC5RW, and K0BEJ.

The Alinco DJ-G7T

Many of the 1.2 GHz operators used the Alinco  DJ-G7T triband handheld transceiver. This radio covers the 2m, 70cm and 23cm bands. The RF output on 23 cm is only 1 watt but it is the lowest-cost way of getting a signal on that band.





Pikes to Uncompahgre

On Saturday, Joyce/K0JJW and I were on Pikes Peak (W0C/FR-004) and worked Randy/K5RHD on Mount Evans (W0C/FR-003) at a distance of 97 km (60 miles). Signals were strong and we had no problem making those contacts.

We also worked David/W0ADV on Uncompahgre Peak (W0C/RG-001) at a distance of 227 km (141 miles). David used the Alinco HT driving a 16-element Comet Yagi. We had a bit more power (10 watts) from our Kenwood TM-541A transceiver, also driving a Comet Yagi antenna.  Signals were strong in both directions and these QSOs were a new personal best for both Joyce and me on 1.2 GHz.

Evans to Sunshine

On Sunday, we moved to Mount Evans and Randy/K5RHD activated Pikes Peak. We worked Randy on that peak, the reverse of the QSO on the previous day. Meanwhile, David/W0ADV was climbing two 14ers in the San Juan Mountains: Redcloud Peak (W0C/RG-002) and Sunshine Peak (W0C/RG-004). These two summits are close to each other, separated by a saddle, so it is common to climb them as a pair.

David/W0ADV aims his 16-element Yagi on Sunshine Peak.

David’s route had him climbing Redcloud first and then continuing on to Sunshine, then returning to Redcloud on the way back down. We worked him on Sunshine and on the return trip over Redcloud, as he headed back to the trailhead.

Map of the radio contact between Sunshine Peak and Mount Evans.

We had trouble hearing David on Sunshine Peak but his signal was just strong enough that we could complete the contact. His signal was stronger from Redcloud, a surprise because the two summits are close in elevation. I expected them to be about the same in terms of signal path and strength. David reported that there was a ridge to the northeast of Sunshine that might be blocking the signal, but it was not in the way for Redcloud.

So these contacts with Sunshine Peak set a new personal best for both Joyce and me on 1.2 GHz (244 km, 152.6 miles). David clearly did the hard work, summiting two 14ers in a day. (We were on a drive-up mountain with a short hike.) Thanks, David/W0ADV!

I was very pleased with the results from the 14er weekend. Now I am wondering what’s next for us concerning 1.2 GHz. We can probably make radio contacts further out but it is going to depend on the topography of the path. We will have to do some investigation on additional summits to try.

73 Bob K0NR

Can You Hear a 1-dB Change?

Posted on by — No Comments ↓

Decibels are commonly used in electronic communications to describe and compare signal levels. I’ve often heard that one dB is considered to be the smallest change that a typical person can detect by ear. I recently came across this website audiocheck.net that is set up to generate different audio tones and to do a blind test of how small of a change you can detect.

I started with testing for 6-dB and 3-dB changes. Easy Peasy. Then I tried the 1-dB test. I could detect the change in level fairly consistently but I did have to concentrate. Continuing on to the 0.5-dB change, I had a very high failure rate. It was very difficult to detect that small of a change. So I have to conclude that 1 dB is about the limit for a change I can hear.

How about you? Take the test on the website and let us know how you did.

There are many other audio tests to explore on that site, including the highest frequency you can hear, the minimum pitch change you can hear, etc. Check it out: www.audiocheck.net

73 Bob K0NR

GMRS: Basic Radio Communications

Posted on by — 2 Comments ↓
A mobile GMRS transceiver made by Midland USA.

Lately, I’ve been talking with people in search of basic radio communications for their friends or family. They end up talking to me because someone steered them to ham radio as a solution and I teach ham radio license classes. Of course, I am happy to pull them into the wonderful ham radio world but sometimes the General Mobile Radio Service (GMRS) might be a better way of meeting their needs.

I have a GMRS license and have written about it. See GMRS: The Other UHF Band.  GMRS is a good fit for local communications, perhaps just using simplex or with repeaters, if available in your area.  FCC regulations (Part 95) require you to have a license (and pay a fee) to use GMRS. Unlike ham radio, the license does not require you to pass an exam and the license is valid for you and your family members.

Common Uses

GMRS works well for family communication “around town” or some local area. Depending on the type of equipment used, simplex range of 10 or 15 miles is achievable, maybe more. The use of repeaters can extend this a lot further. You might even decide to put a GMRS repeater on the air, which is not too difficult of a project.

Another common use of GMRS is when a group is traveling down the highway in multiple vehicles. Yes, you might be able to just use your mobile phone to stay in touch but a two-way radio may be a better solution (especially when mobile phone coverage is poor or non-existent). Many off-road vehicle clubs have discovered GMRS and use it for communicating during trail rides.

GMRS is also a great tool for outdoor activities such as camping, hunting, hiking and skiing. It is a handy way of staying in touch with your tribe, while not depending on the mobile phone network.

GMRS Is Not FRS

A GMRS handheld transceiver made by Wouxun.

GMRS often gets confused with the Family Radio Service (FRS). They both include the use of inexpensive, low-power handheld radios and they share many of the same frequencies. When the FCC authorized FRS, GMRS was already an established radio service and it squeezed FRS into the same band. FRS radios were limited to lower output power, so many manufacturers decided to offer combination FRS/GMRS radios, which operated at higher power levels. The user was supposed to obtain a GMRS license to use this type of radio but most people didn’t bother with it. (Most people probably didn’t even know of the requirement.)  The FCC also specified 2.5 kHz (half deviation) FM for the FRS radios on the same channels as the existing 5 kHz deviation GMRS radios. Intermingling an unlicensed radio service with a licensed service was probably not a wise move. In general, the FCC regulations caused a lot of confusion between the two services.

In 2017, the FCC adopted a major revision to the GMRS rules to clean up some of the problems with the service. In particular, the regulations now prohibit the sale of combination FRS/GMRS radios. A great idea but a bit too late in the game.

The GMRS rules are pretty easy to understand, so take a look here: FCC Part 95 – Personal Radio Services

Equipment

There are basic handheld transceivers for GMRS. They look and act a lot like the FRS radios that are widely available, but GMRS can provide more capability. An advanced handheld radio will have support for using repeaters (transmit offset) and higher power (up to 5 watts).

This GMRS radio has the display and controls integrated into the microphone, for easy installation.

To dramatically improve the radio range, you can use GMRS mobile and base stations that can run even more power, up to 50 watts. More importantly, you can use external antennas on your vehicle or your house. These can make a huge difference in performance. (FRS is limited to handheld transceivers and the permanently-attached rubber duck antenna.)

For radio amateurs, this should all sound pretty familiar. GMRS looks and acts a lot like an FM transceiver on the 440 MHz (70 cm) band. It is a great alternative for local radio communications for people not interested in a technical hobby such as amateur radio.

2021 Colorado SOTA and 14er Event

Posted on by — 1 Comment ↓

The Summits On The Air (SOTA) program originated in the United Kingdom but has propagated to most countries around the world. The program came to Colorado on May 1st, 2010 with Steve/WGØAT sending a CQ from Mount Herman, just west of Monument. Today, the SOTA program in Colorado (called WØC-SOTA) is very active with roughly 180 activators that operate from Colorado summits.

To celebrate our 10th Anniversary, WØC-SOTA is organizing a 10-10-10 Event with a challenge for Activators and Chasers alike. (Activators operate from summits, Chasers try to contact them.)

Activator challenge: Activate 10 (or more) 10K feet (or higher) summits (in Colorado/WØC) within 10 days.

Chaser challenge: Chase Activators on 10 different (or more) qualifying WØC summits (10K or higher) within the 10 days.

Event Date: We will kick-off the event in conjunction with the Colorado 14er event on August 7th, 2021 and conclude on August 16th.

Everybody is invited to participate, either as an Activator or a Chaser. Block off these days in your calendar now and start planning for how you can participate. Feel free to operate as much or as little as you would like. It is all about having fun messing around with radios. Any HF, VHF or UHF band can be used for making SOTA contacts, with the most popular ones being 40m (CW & SSB), 20m (CW & SSB) and 2m (FM).

Steve/WG0AT operating from the summit of Mount Herman (W0C/FR-063)

Note that the recommended 2m FM frequencies for the 14er event have changed to:

146.580 FM   North America Adventure Frequency
146.550 FM    Simplex Alternate
146.490 FM    Simplex Alternate
146.520 FM    National 2m FM Calling Frequency
(as needed, please don’t hog the calling frequency)

There will be a leaderboard on the W0C-SOTA website showing all participants who meet one of the challenges. More details will be announced on the WØC-SOTA Website as soon as they are hashed out.

For more information on the SOTA program in general, see the worldwide SOTA website.

Full Disclosure: May 1 is actually the 11th Anniversary, but the COVID-19 Pandemic interfered in 2020, so we are catching up.

A Decibel Is Still A Decibel

Posted on by — 4 Comments ↓

When discussing signal levels and power output, hams like to say things like:

Using higher power isn’t important because it only gives you one additional S unit

and

You’ll lose some power in the coax but you won’t even notice a few dB

These statements are often true and at the same time may be completely wrong. I’ve noticed that radio amateurs pushing the limits of their station pay close attention to every decibel they gain or lose. This is especially true at VHF/UHF frequencies where signals may be weak. A dB here, a dB there, the next thing you know it adds up to something big!

Definitions

First, let’s make sure we have a few definitions right. The decibel (dB) is defined as the ratio of two power levels:

dB = 10 log (P2/P1)

One decibel corresponds to a 26% increase in power level. A well-known rule of thumb is that doubling the power corresponds to a 3 dB increase. Similarly, chopping the power in half drops the signal level by 3 dB.  A 10 times increase in power is 10 dB. (Voltage can also be used to calculate decibel relationships but to keep it simple, I’ll just use power.)

The S Unit is normally defined as a 6-dB change in signal level, which is a factor of 4 in power. (Your S meter may or may not actually follow this rule but that is a topic for another day.)

Power Level

Let’s compare a few different power levels to get a feel for how decibels and S units behave. Let’s use a 5 watt QRP level as our reference power. If we crank up the power to 100 watts, we  have 10 log (100/5) = 13 dB increase in power level. This is slightly more than two S units (2 x 6 dB), so we would expect the S meter on the other end to read 2 units higher.

Now suppose we kick in our linear amplifier to produce a 1 kilowatt RF signal. This power level is 10 log (1000/5) = 23 dB higher than the 5 watt signal, or roughly four S units.

Now if our QRP signal was a solid S9 to start with, adding another 23 dB on top of it may not be that significant. The station can be heard at S9 or can be heard even louder at S9 + 23 dB. Except when there’s a pile of stations all calling that rare DX…then the loudest station tends to be heard. Crafty operating skill and good luck may overcome the power difference.

But consider the other extreme. Our QRP station is being heard right at the noise floor on the receive end. The two stations are struggling to complete the contact and the propagation path degrades by 2 dB. Now the QRP station is below the noise and uncopyable. We increase our power to 100 watts and gain 2 S units…still not very strong but the ability to receive the signal improves dramatically. Crank it up to 1000 watts and you gain another couple of S units and the copy is quite good. The key point is that changes in signal level matter most at the margin, when you can just barely copy the signal. (By the way, there is nothing wrong with running QRP…many ops enjoy the challenge of making contacts with low power.)

At the receiver, our ability to recover the signal is determined by the signal-to-noise ratio (SNR). A higher noise floor at the receiver means it will be more difficult to hear the signal coming in. The type of modulation being used may also make a big difference. Good old CW and the WSJT modes use a narrower bandwidth and will get through when wider-band modulation (SSB, FM) fails. In all cases, a stronger signal works better.

Antennas

Antenna systems also increase our signal level…and they do it for both transmit and receive. I recently did some comparisons of VHF antennas from a SOTA summit. My 2m Yagi antenna has 6 dB of gain (referenced to a dipole) and my comparisons showed that the performance of this antenna was good enough to pull some signals out of the noise to be solid copy. This occurred when the other station’s signal was right at the noise floor (using my lower gain antennas) such that the 6 dB improvement had a significant impact.

Sometimes hams will say that VHF is just line-of-sight propagation and that the signal level doesn’t matter much. This is partially true but often we are stretching for contacts beyond line-of-sight. Take a look at this article: The Myth of VHF Line-Of-Sight. This is another case where we are operating on the margin and every dB matters.

Feedline loss can cause us to lose decibels, which impacts both transmit and receive performance. If your coaxial cable is short, then the losses may be negligible. Increasing cable length and increasing frequency produce more loss. For example, 100 feet of RG-8X has only 1.1 dB of loss at 10 MHz. Increase the frequency to 146 MHz and the loss jumps to 4.5 dB, using the Times Microwave cable calculator. That means 50 watts of power at the transmitter turns into 17.7 watts at the other end of the cable. Using LMR-400 coax reduces the attenuation to 1.5 dB.

Summary

You can choose to ignore small changes in your signal level. A dB here or there may not make a big difference with casual ham radio operating. But these losses tend to add up and may become significant. Most importantly, just a few dB may be the critical difference between making a radio contact or not, when operating at the margin.

About Those Drive Up SOTA Summits

Posted on by — 7 Comments ↓

The Summits On The Air (SOTA) program was designed with hiking/climbing in mind but some SOTA summits have roads that go to the top. Some notable ones that come to mind are Pikes Peak (W0C/FR-004), Mount Scott (W5O/WI-002), Mount Coolidge (W0D/BB-012), Sandia Crest (W5N/SI-001), Mount Greylock (W1/MB-001) and Mount Mitchell (W4C/CM-001). There are also summits that have trams, trains and chairlifts that provide easy access.

Joyce/K0JJW operating on Pikes Peak.

Some SOTA activators dismiss drive-up summits as not being the real SOTA experience. Everyone is entitled to their point of view and can choose their summits accordingly. I am too pragmatic (read: lazy) to worry about that. If there’s a road to the top, I am probably going to use it, whether it’s a serious 4WD road or a well-paved surface.

The Rules

The specific terminology used in the various SOTA Association Reference Manuals (ARMs) may vary a bit so I will refer to the Colorado (W0C) ARM:

The SOTA General Rules state that the method of final access to the radio operating location must be nonmotorized. The General Rules do not specify the distance, either vertical or horizontal, that this final access must cover. The use of non-motorized vehicles (e.g. bicycle) or pack animals to enter the Activation Zone (AZ) is permitted. Operations must not be in, or in the close vicinity of a motor vehicle, cannot use a permanent electrical power source, nor use a fossil fuel generator in any fashion. No part of the station may be connected in any way with the motor vehicle. All equipment must be operated from portable power source (batteries, solar cells, etc).

The intent of the rules is quite clear: SOTA is not a motorized activity…you need to operate independently of a motor vehicle. Like most rules though, there are shades of grade on the interpretation. Just how independent do we need to be? Unless you started your hike from your home location, all SOTA activations have some form of mechanized transport involved. It is just a question of how far you ride and how far you walk.

Some SOTA Associations used to suggest or require a qualifying hike for drive-up summits. This means that you hike down from the summit for some minimal vertical distance (100 feet or so) and then hike back up to “qualify” your activation. This idea seems to be on the way out and this language was removed from the W0C ARM some years ago. However, your Association may still encourage it or you could just decide that it is a practice that you want to do. (You can find ARMs here.)

Some new SOTA activators look at the rules and suggest they are too restrictive. They argue that people with limited mobility should be allowed to operate from a vehicle. These requests have been heard before and are immediately rejected. I do think the SOTA Management Team has crafted a workable approach that keeps SOTA oriented towards backpack portable operating while still allowing for minimal mobility.

Our Approach

The guiding principle that we use on our drive-up or tram-up summits is to use our normal backpack-portable SOTA station. However we get to the summit, everything goes into a pack which is carried for some minimal distance away from the vehicle, tram or chairlift. This keeps the drive-up SOTA station configured just like the hike-in variety: compact, lightweight, no chairs, no tables (unless they fit into our packs.) This avoids the “Field Day” style set up with lots of gear carried from the vehicle via multiple trips to create a Big Portable Station. Sometimes the drive-up summits are overrun with people, so a short hike away from the crowds can get you to a quieter spot.

That’s how we do it. What are your thoughts?

73 Bob K0NR

VHF SOTA Antenna Tests

Posted on by — 2 Comments ↓

A perpetual ham radio question is always which antenna is best? I have several different antennas and antenna configurations for working VHF SOTA and decided to do some comparisons.

Eagle Rock – W0C/SP-113

To test out some of our 2m SOTA antennas, Joyce/K0JJW and I went to Eagle Rock (W0C/SP-113) with an elevation of 9710 feet. I did the radio operating while Joyce collected the data. Eagle Rock pokes up out of South Park, which is a broad, high plain in central Colorado. This summit is kind of “mid-range” for Colorado…not as high as the 14ers but with significant elevation and prominence (~500 feet). It also was close enough to a number of SOTA chasers so I could get some good S-meter readings to compare antennas. On the summit, there is a clear 360-degree horizon, dropping off quickly in all directions.

Antennas Tested

Antenna A is our GO-TO antenna for VHF SOTA is the 3-element Yagi from Arrow Antenna, handheld so the boom is about 5 feet off the ground. Arrow does not specify the gain on this antenna but it has been measured at the Central States VHF Society conference to be ~6dBd.

Antenna A: Arrow 3-element Yagi for 2 meters.

Antenna B is a dual-band J-pole manufactured by N9TAX, supported by a telescoping fishing pole commonly used by SOTA activators. A J-pole has a halfwave radiator, so the gain is about 0 dBd, the same as a dipole.

Antenna B: Rollup J-pole (N9TAX) on a fishing pole.

Antenna C is an RH770 telescopic antenna mounted on a monopod, using a bracket that I made. See VHF/UHF Omni Antenna for SOTA Use. This antenna is a halfwave on 2 meters, so again we’d expect the gain to be ~0 dBd. The antenna is supported by a monopod which I usually just stick into the ground or strap to a bush.

Antenna C: RH770 Telescopic BNC dualband antenna on a monopod.

The three antennas being tested were driven with short coaxial cables fitting with BNC connectors for easy changes. The transceiver was a Yaesu FT-90 powered by a small Bioenno battery.

Chaser Stations

I put the word out that I’d be doing some antenna comparisons and five chasers showed up to assist. (There were are few other chasers that were too close to Eagle Rock such that the S meter readings would have all been “full scale” and not useful.)

Most of these stations were not line-of-sight because there is mountainous terrain blocking the direct path. This makes for a good test because this is often the situation when doing SOTA activations in Colorado. We often have mountains in the way, even on the high summits. Said another way, line of sight contacts are easy-peasy and the antenna performance is not critical. Getting the signal to punch through or around mountains is when the antenna really matters.

WZ0N was line-of-sight from Eagle Rock. KN0MAP was not line-of-sight and he had his Yagi antenna pointed at Pikes Peak (away from Eagle Rock). This is a common technique on VHF…point at a high summit and hope you get enough of a reflection to make the contact. The chasers are listed below.

Callsign Equipment Distance/Terrain
W0BV Icom IC-2730, X200A antenna, 35 watts 42 miles, blocked by a ridge
AD0WB Kenwood TH72A, X300A antenna, 5 watts 39 miles, blocked by mountains
KN0MAP Yaesu FT-857, 10-element Yagi pointed at Pikes Peak 35 miles, reflecting off Pikes Peak
WZ0N Baofeng HT, 5 watts 29 miles, Direct line of sight
K0MGL Yaesu FT-8900, 1/4-wave ground plane antenna, 10 watts 32 miles, blocked by mountains

Signal Reports

Your typical FM VHF/UHF radio doesn’t have a real S meter, just a bar graph display, so we worked in terms of “number of bars”. This does not give us a calibrated measurement but it does provide for a valid comparison. A signal that is 5 bars is stronger than one with 3 bars, but we don’t really know how much better (in terms of dB or S units). We recorded meter readings at both ends of the radio contact. My Yaesu FT-90 meter has 7 bars as full scale. On transmit, I was running the FT-90 at 20 watts.

Antenna A
Yagi		 Antenna B
J-pole		 Antenna C
RH770
Callsign Report Sent by K0NR Report Received by K0NR Report Sent by K0NR Report Received by K0NR Report Sent by K0NR Report Received by K0NR
W0BV 4 6 3 2 2 2
AD0WB 5 Full scale 3 Full scale, a little noisy 4 Full scale
KN0MAP 4 6 nil nil
WZ0N 7 5 5 4 5 4
K0MGL 7 6 1 1, very noisy 1 0, very noisy

A quick look at the Antenna A column shows that the Yagi had consistently better signal levels than the other two antennas.  For each contact, I did point the Yagi in the direction of the strongest signal, taking care to maximize the signal. This is an advantage and disadvantage…you have to point the antenna but you do get a stronger signal.

The two omnidirectional antennas (B and C) did not require pointing and they performed about the same. My impression is that Antenna B had slightly better overall performance based on listening to the FM noise. But note that the AD0WB readings were slightly better with Antenna C.

As is very common in the mountains, we experienced multipath distortion. This occurs when the signal takes multiple paths to the other station (reflecting off mountains) and then recombines at the receiver creating distortion and variation in signal level. Small changes in antenna position can cause a change in the signal level and amount of distortion. Multipath distortion was much more noticeable on the omnidirectional antennas. The Yagi antenna exhibited multipath but at a much-reduced level. This is a well-known phenomenon: directional antennas reduce multipath effects.

Another factor that I believe is important is that Eagle Rock pokes up quite dramatically compared to the surrounding terrain. Compare this to a large, flat summit that could shadow your signal at some angle of radiation. Antenna height relative to the immediate summit terrain might be more important. Another factor is that Eagle Rock is pretty much granite and not very conductive. So there is not much difference between having an antenna 5 feet off the ground (rock) vs putting it up on a mast.

Previously, I wrote about Charlie/NJ7V’s video that compared a roll-up J-pole with a 3-element Arrow Yagi antenna on two meters. Charlie’s results were a bit different, indicating that the J-pole was about the same or in some cases better than the Yagi.

Conclusions

The Yagi antenna clearly outperformed the two other antennas. So the Arrow 2m Yagi will continue to be our antenna of choice.

The paths to K0MGL and KN0MAP were the most difficult and this is where the Yagi performance really came through. For KN0MAP, we were both pointed at Pikes Peak and working off the reflection. This method worked well with the Yagi but had significant signal loss such that the omni antennas could not make it. Working K0MGL on the omni antennas was not much better but we did squeak out two contacts.

I was a bit surprised that Antenna B did not do significantly better than Antenna C, due to antenna height. This all seems to indicate that once you are on top of a rocky SOTA summit, additional antenna height does not matter. (It would be interesting to do some experiments with the same antenna set at different heights.) I do like having an omni antenna available so that we can monitor in all directions while eating lunch, etc. If we only have the Yagi at lunch time, it is usually laying on the ground or stuck into a tree, certainly not effective in all directions. Antenna C is so easy to deploy, it will probably be my preferred omnidirectional antenna.

This is just one test and one set of results. It will be interesting to do some further comparisons from other locations. Thanks to the chasers for assisting with these tests.

73 Bob K0NR

Test data in Excel spreadsheet:  Antenna comparisons – 2m FM Eagle Rock

Monitor Marine VHF Near the Ocean

Posted on by — 3 Comments ↓

When on a road trip, I usually monitor the 2m FM calling frequency, 146.52 MHz. For the most part, that frequency is pretty quiet but sometimes a fellow traveler, camper, SOTA activator or random ham shows up on frequency. I don’t usually bother with tuning into local repeaters as that requires frequent adjustment of the radio while cruising down the highway.

Our RV has an Icom IC-2730A transceiver that covers the 2m and 70 cm bands. This radio has two receivers, so one receiver is set to 146.52 and other one is set to “something else.”  Sometimes, I’ll go ahead and put one of the local repeaters in the other receiver, especially if we are going to hang out in one location for a while.

When driving near coastal areas, I often put the second receiver on the VHF Marine Channel 16 (156.80 MHz). This is the International Hailing and Distress Frequency for marine radio. You will hear boats calling each other on this channel, then switching to another working channel. It is also common to hear the U.S. Coast Guard come on the air with an announcement. (The USCG may say switch to Channel 22 to hear the announcement.)

Some other useful marine frequencies:

Channel 22   157.100 MHz   Coast Guard Liason Channel
Channel 68   156.425 MHz   Non-Commercial Working Channel

The complete list of VHF Marine frequencies are available here:

U.S. VHF Marine Radio Channels and Frequencies

Just another frequency to listen to when on the road.

73 Bob K0NR



Parks, Summits and Roadtripping

Posted on by — 3 Comments ↓

Getting out on the road and exploring is always fun, especially if you have ham radio on board. Joyce/K0JJW and I have been doing quite a bit of travel lately and we just completed our longest road trip so far with our RV.

Overview of the trip: Colorado to Key West, Florida and back again.

Our main destinations for the trip were four national parks: Congaree NP, Biscayne NP, Everglades NP, and Dry Tortugas NP. This determined the main route but we also found plenty of other things to do along the way. We started in Colorado, cut the corner across New Mexico into Texas, then east through Oklahoma, Arkansas, Mississippi, Alabama, Georgia and South Carolina. Then we headed south to Florida and ended up in Key West. Our return trip followed the gulf coast back to Texas, then back home.

Travel Philosopy

Planning a trip is full of trade-offs, so it is useful to have a general approach that the participants agree on. Our approach to this trip was to not drive too far every day but drive enough to hit the various places we wanted to visit. We are still working to find the right balance. This trip lasted 39 days, covering 6000 miles, which is about 150 miles per day. Some days we drove very little and other days were longer, maybe 400 miles.

Although the trip was created around the national parks, we filled in with interesting stops along the way. In particular,  we like to camp at state parks: the campgrounds are great and there’s usually something interesting about the park to enjoy. And did I mention they are natural Parks On The Air (POTA) opportunities? We also tried to work in some Summits On The Air (SOTA) activations that are relatively easy to access.

Rocky Victoria

Our recreational vehicle (RV) is a 2018 Winnebago Paseo, built on a Ford Transit chassis. We named her Rocky Victoria, using non-standard phonetics, but usually just refer to her as “Rocky”.

Rocky Victoria is our Winnebago Paseo RV.

Compared to your typical car or SUV, this Class B RV is huge. Compared to other RVs, this vehicle is small, about 22 feet long, usually fits in a standard parking space. With all of the normal RV stuff installed (stove, microwave, sink, refrigerator, toilet/shower combo, bed, etc.) there is not a lot of room left for personal gear.

Rocky fits us really well because it is easy to drive, getting in and out of places without much hassle. Also, setup and tear-down time at a campsite is minimal. One limitation is poor ground clearance, which is fine for forest service roads in good condition but not appropriate for offroad use. This affects what SOTA and POTA activations we do.

Radio Gear

We have an ICOM IC-2730A in Rocky, for normal 2m/70cm FM comms while running down the road. The antenna (not visible in the photo) is just a short whip on the driver’s side of the hood.

Rocky is not a big RV so by the time we load up all of our stuff, it is full. So the radio gear (and everything else we take along) must follow the backpacker principle of “take only what you need, use what you take.” No room for extra stuff you don’t use.

For this trip, we took along two ham stations:  A basic VHF SOTA station and a capable, picnic-table POTA station.

VHF SOTA Station

The VHF SOTA station is very compact and easy to carry. It covers the 2m and 70cm bands on FM, which is usually sufficient for us. The RF output power is only 5W, so it does not have the punch of one of our higher power radios. Not a bad tradeoff though.

Two Yaesu FT-1DR 2m/70cm handheld transceivers
Arrow 3-element Yagi 2m antenna
Two RH 770 dualband SMA antennas
HT chargers and other accessories

Picnic Table POTA Station

The POTA station is built around the FT-991, which is a 100 watt transceiver (HF/VHF/UHF) that is reasonably compact. We use a 20 Ah LFP battery to power the radio so it is portable and independent of the RV power sources.

Yaesu FT-991 Transceiver (HF, 6m, 2m, 70cm)
End-fed halfwave antennas for 40m, 20m, 17m, 15m, 10m
Roll-up j-pole antenna for 2m/70cm
20-foot fishing pole to support antennas
Two 25-foot lengths of RG-8X coaxial cable
12V, 20 Ah LFP Battery (Bioenno Power)

Joyce/K0JJW operates the picnic-table POTA station.

The POTA station does a great job at a campsite, usually on a picnic table. The POTA station fits inside my Kelty backpack so it can be taken for a hike. It is a bit heavy for a typical SOTA summit but works OK for drive-up and short-hike summits. It can also be set up inside the RV if required.

Single-band end-fed halfwave antenna (PAR EndFedz) for 20 meters.

Typically, we are going to try operating on 20m or 17m so that the halfwave antenna easily hangs from the fishing pole support. Depending on conditions, we often have to use 40m which takes a little more work to hang. Not a huge problem, though.

Collapsible fishing pole for supporting wire antennas.

For portable operating, I’ve tended to use a variety of end-fed wire antennas supported by a non-conductive pole of various sizes. For this trip, we used a 7 meter (21 feet) telescoping fishing pole that collapses to about 30 inches.  This pole will fit into my SOTA backpack.

20m halfwave antenna supported by the fishing pole mounted on the RV. (The 20m halfwave needs to be hung at an angle to be supported off the ground.)

To support the fishing pole directly from the RV, I attached a short length of plastic pipe to the ladder. It is a simple matter to slide the pole into pipe, resulting in the top of the pole being about 26 feet off the ground.

A short piece of plastic pipe is attached to the RV ladder so the fishing pole can be easily inserted.

The combination of the two stations gives us a lot of options for ham radio operating.

Summits On The Air

We activated three summits along the way: Mount Scott (W5O/WI-002) in Oklahoma, Choctaw County HP (W5M/MS-001) in Mississippi, and Monte Sano Mountain (W4A/HR-002) near Huntsville, AL.

Monte Sano Mountain is just east of Huntsville, AL inside Monte Sano State Park.

Monte Sano Mountain turned out to be a unique location because it is located in the Monte Sano State Park. The park surrounds the summit, which is broad and flat. We determined that the park campground is within the activation zone, so we camped there and did both SOTA and POTA activations.

Parks On The Air

We did a number of POTA activations along the way. This was done opportunistically, typically in the afternoon after we had set up our campsite. Our radio operating used SSB on 20m or 40m, along with a few 2m FM contacts.

K-0688  Lake Meredith National Recreation Area   US-TX
K-1090  Lake Chicot State Park   US-AR
K-1048  Monte Sano State Park  US-AL
K-0017  Congaree National Park US-SC
K-1832  Anastasia State Park  US-FL
K-0024  Everglades National Park  US-FL
K-0635  St. George State Park  US-FL
K-2992  Brazos Bend State Park  US-TX

Every one of these activations was a lot of fun. There’s nothing like sitting outdoors in the sunshine working a pileup of enthusiastic POTA hunter stations.

Summary

In this post, I emphasized the ham radio activity during this trip. Radio operating was not our main goal but it was a big part of the overall experience. Joyce and I had a fantastic time touring this section of the country, and we are looking forward to our next trip.

73 Bob K0NR
